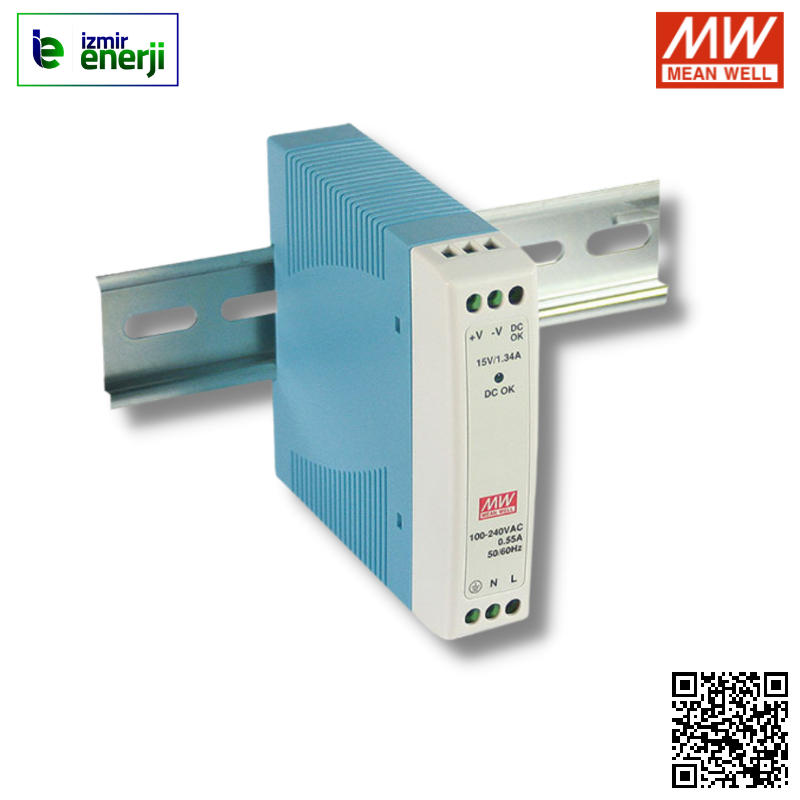

RAY MONTAJ MDR SERİSİ
| ÜRÜN KODU | BESLEME GERİLİMİ | ÇIKIŞ | EBATLAR | |
|---|---|---|---|---|
| 10W MDR SERİSİ | ||||
| MDR-10-5 | 85-264 VAC 120-370 VDC | 5VDC | 2A | 22.5 x 90 x 100 mm |
| MDR-10-12 | 85-264 VAC 120-370 VDC | 12VDC | 0.84A | 22.5 x 90 x 100 mm |
| MDR-10-15 | 85-264 VAC 120-370 VDC | 15VDC | 0.67A | 22.5 x 90 x 100 mm |
| MDR-10-24 | 85-264 VAC 120-370 VDC | 24VDC | 0.42A | 22.5 x 90 x 100 mm |
| 20W MDR SERİSİ | ||||
| MDR-20-5 | 85-264VAC 120-370VDC | 5VDC | 3A | 22.5 x 90 x 100 mm |
| MDR-20-12 | 85-264VAC 120-370VDC | 12VDC | 1.67A | 22.5 x 90 x 100 mm |
| MDR-20-15 | 85-264VAC 120-370VDC | 15VDC | 1.34A | 22.5 x 90 x 100 mm |
| MDR-20-24 | 85-264VAC 120-370VDC | 24VDC | 1A | 22.5 x 90 x 100 mm |
| 40W MDR SERİSİ | ||||
| MDR-40-5 | 85-264VAC 120-370VDC | 5VDC | 6A | 40 x90 x 100 mm |
| MDR-40-12 | 85-264VAC 120-370VDC | 12VDC | 3.33A | 40 x90 x 100 mm |
| MDR-40-24 | 85-264VAC 120-370VDC | 24VDC | 1.7A | 40 x90 x 100 mm |
| MDR-40-48 | 85-264VAC 120-370VDC | 48VDC | 0.83A | 40 x90 x 100 mm |

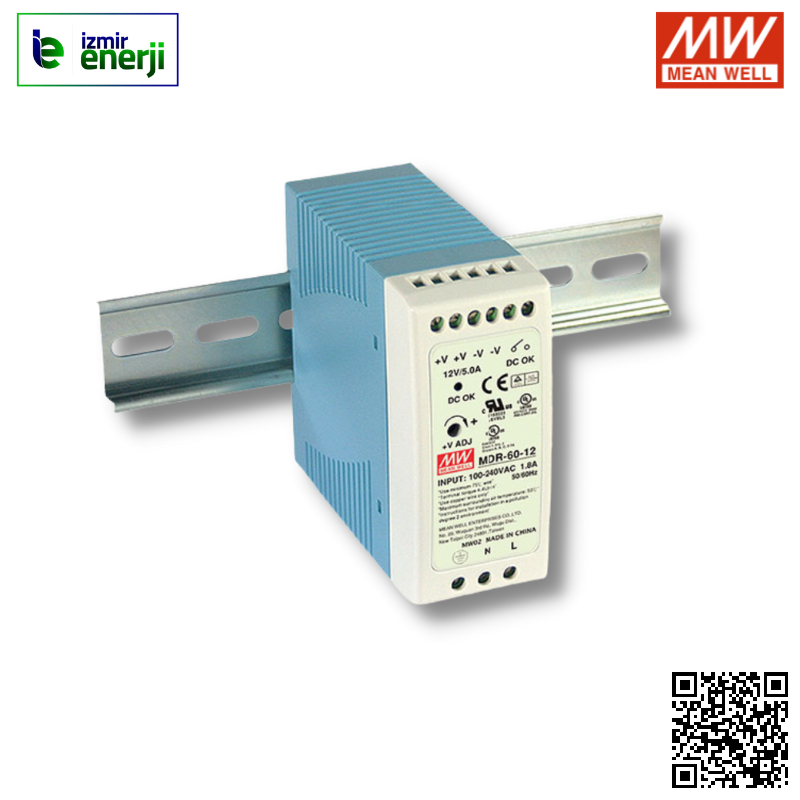

| 60W MDR SERİSİ | ||||
| MDR-60-5 | 85-264VAC 120-370VDC | 5VDC | 10A | 40 x90 x 100 mm |
| MDR-60-12 | 85-264VAC 120-370VDC | 12VDC | 5A | 40 x90 x 100 mm |
| MDR-60-24 | 85-264VAC 120-370VDC | 24VDC | 2.5A | 40 x90 x 100 mm |
| MDR-60-48 | 85-264VAC 120-370VDC | 48VDC | 1.25A | 40 x90 x 100 mm |
| 100W MDR SERİSİ | ||||
| MDR-100-12 | 85-264VAC 120-370VDC | 12VDC | 7.5A | 55 x 90 x 100 mm |
| MDR-100-24 | 85-264VAC 120-370VDC | 24VDC | 4A | 55 x 90 x 100 mm |
| MDR-100-48 | 85-264VAC 120-370VDC | 48VDC | 2A | 55 x 90 x 100 mm |
