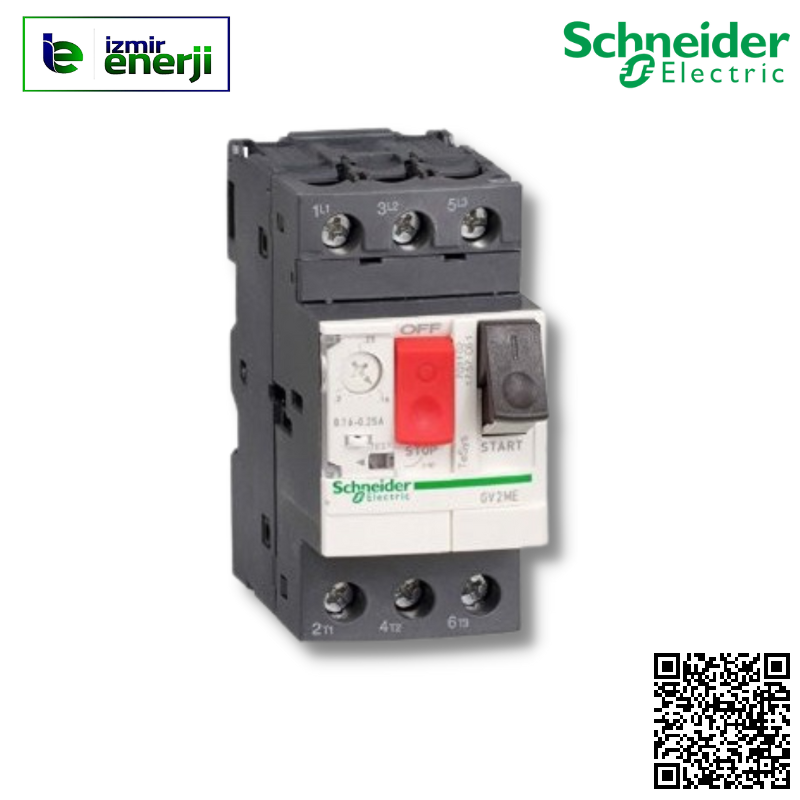

GV2ME06 0.37 / 0.55kW (15-100 kA) 1... 1.6A Motor Protection Switches

GV2ME06 0.37 / 0.55kW (15-100 kA) 1... 1.6A Motor Protection Switches

Category
⁕ TeSys GV Series Motor Protection Switches
Brand
SCHNEIDER
Stock code
GV2-ME06
*starting from 5,21 USD!
%25 Discount
46,82 USD + VAT
74,91 USD
Transfer
56,18 USD
Contact us for purchases over 200kg and 15.000 EURO
Product information
Product information
Anaser
TeSys
Name of the product
TeSys GV2
Product group
GV2ME
device app
Engine
trip unit technology
thermal magnetic
ComplementaryPole definition
3P
Network type
HUNGRY
usage category
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2
network frequency
50/60 Hz conforming to IEC 60947-4-1
fix mode
35 mm symmetrical DIN rail: with clip
Panel: screwed (with adapter plate)
working position
any location
engine power kW
0.37 kW at 400/415 V AC 50/60 Hz
0.37 kW at 500 V AC 50/60 Hz
0.75 kW at 690 V AC 50/60 Hz
0.55 kW at 400/415 V AC 50/60 Hz
0.55 kW at 500 V AC 50/60 Hz
0.75 kW at 500 V AC 50/60 Hz
1.1 kW at 690 V AC 50/60 Hz
cutting capacity
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100% at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control type
on/off button
[In] rated current
1.6 A
Thermal Adjustment Range
1…1.6 A
magnetic trip current
22.5 A
[Ue] rated operating voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] classical outdoor thermal current
1.6 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
power distribution per pole
2.5W
Mechanical durability
100000 cycles
electrical endurance
100000 cycles for AC-3 at 440 V
maximum run rate
25 cyc/h
nominal duty
Continuous conforming to IEC 60947-4-1
connections - terminals
Screw clamp terminals 2 cables 1…6 mm² solid
Screw clamp terminals 2 cables 1.5…6 mm² flexible without cable end
Screw clamp terminals 2 cables 1…4 mm² with flexible
tightening torque
Screw clamp terminals over 1.7 Nm
suitability for insulation
Yes conforming to IEC 60947-1
phase failure sensitivity
Yes conforming to IEC 60947-4-1
Height
89mm
Width
45mm
Depth
78.5mm
Product weight
0.26 kg
Environment Standards
EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1
Product certificates
IECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA
preventive maintenance
TH
IP degree of protection
IP20 conforming to IEC 60529
HR degree of protection
IK04
ambient air temperature for operation
-20…60 °C
Storage ambient conditions
-40…80 °C
fire resistance
960 °C conforming to IEC 60695-2-1
working height
2000 meters
Packing unitsUnit package type 1
PCE
Number of units in the package
one
Package weight (Lbs)
253.9g
Package 1 Height
4.8cm
Package 1 width
8.6cm
Package 1 Length
9.3cm
Sustainability ProposalSustainable offer status
Green Premium product
REACh Regulation EU RoHS Directive
Compatible
EU RoHS Statement
Mercury free
Yes
RoHS exemption information China RoHS Regulation
China RoHS declaration
The product is out of the scope of China RoHS. Substance declaration for informational purposes.
Environmental Statement WEEE
The product must be disposed of in accordance with the special waste collection principles in the European Union markets and should not be left in the trash cans under any circumstances.
Contract guaranteeWarranty
18 months
