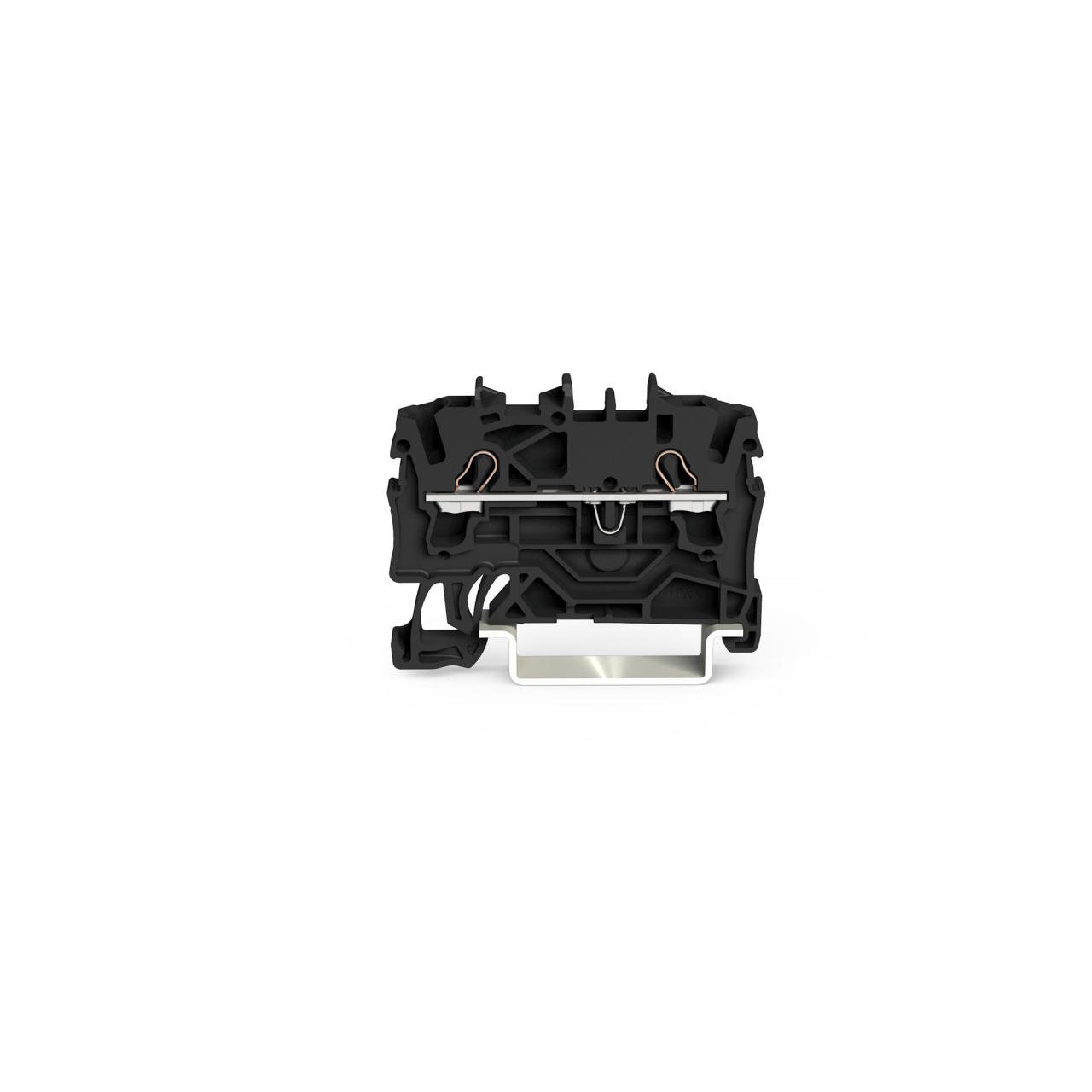

2002-1205 2,5mm² Black Rail Terminal Block

2002-1205 2,5mm² Black Rail Terminal Block

Category
⁕ 2002 Series TOPJOB® S Terminal Block
Brand
WAGO
Stock code
2002-1205
*starting from 5,78 USD!
%42 Discount
51,97 USD + VAT
107,53 USD
Transfer
62,37 USD
Contact us for purchases over 200kg and 15.000 EURO
Fast Shipping
Delivery from stock
Product information
Product information
Details
Electrical Data
Rating per IEC/EN 60664-1
1 rating IEC/TR 60947-7-1
Rated voltage (III/3) 800V
Shock voltage (3) 8 kV
rated current 24A
Rated current (2) 32 A
Indicator (rating) (III / 3) ≙ Overvoltage category III / Pollution degree 3
Less
Approvals per UL 1059
approvals for each UL 1059
Rated voltage UL (Use Group B) 600V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A
Approvals per CSA
approvals for each C22.2 No 158
Rated voltage CSA (Use Group B) 600V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (use Group C) 20 A
old information
Each rating ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)
Rated voltage EN (Ex e II) 550V
Rated current (Ex e II) 22 A
Bridged rated current (Ex e II) 20 A
connection data
Connection technology CAGE CLAMP S ®
Actuation type push-in

study tool
Connectable conductive materials Copper
Nominal cross section 2.5 mm²
Single core lengths 0.25 ... 4 mm² / 22 ... 12 AWG
single core, direct pluggable 1 ... 4 mm² / 18 ... 12 AWG
Fine twisted cables 0.25 ... 4 mm² / 22 ... 12 AWG
Finely twisted cables with insulated ferrules 1 ... 2.5 mm² / 18 ... 14 AWG
min. finely twisted, insulated ferrule, push-in termination 1 ... 2.5 mm² / 18 ... 14 AWG
Note (conductor cross section) Due to the conductor inductance, a conductor with a smaller cross-section can also be inserted via push-in termination.
Stripping length 10 ... 12 mm / 0.39 ... 0.47 inch
Total number of ports 2
Total number of potentials one
Number of levels one
Wiring type Front entry wiring
Number of jumper slots 2
Less
Geometric Data
Width 5.2mm / 0.205 inch
Height from top edge of DIN rail 32.9mm / 1.295 inches
Depth 48.5mm / 1.909 inch
Mechanical Data
Design horizontal
Mounting type DIN 35 beam
Labeling level Center/Side labeling
Material Data
Colour Grey
Insulation material Polyamide (PA66)
fire load 0.109 MJ
Weight 5.1g
Commercial Data
Product group 22 (TOPJOB S)
Packaging type from SAP Box
country of origin ALSO
gin 4017332999168
Customs tariff number 85369010000
