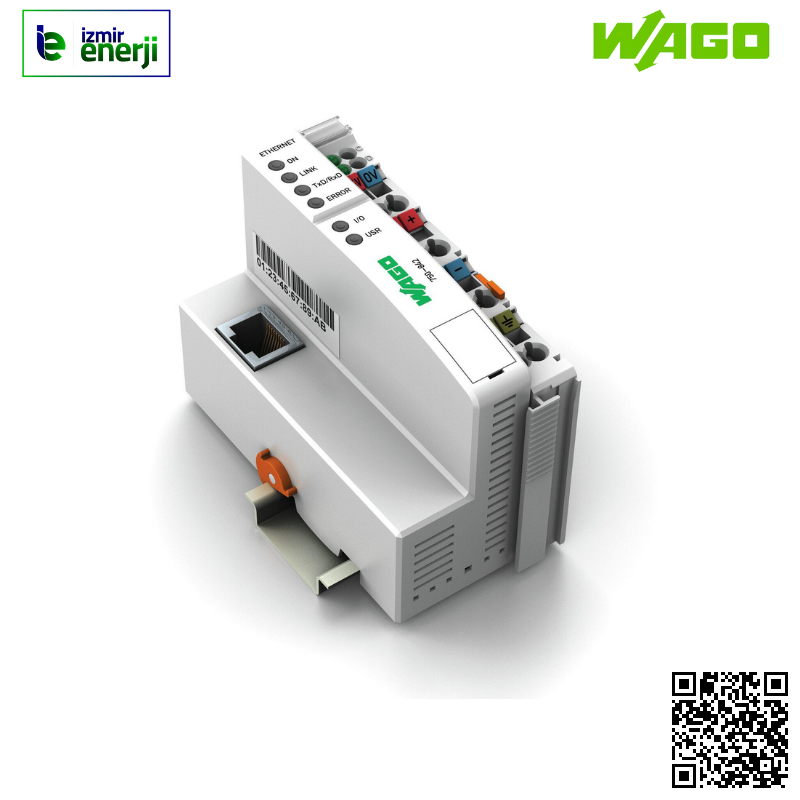

750-842 Controller ETHERNET; 1st generation

Brand
Stock code
750-842
*starting from 53,26 USD!
%60 Discount
479,10 USD + VAT
1.437,29 USD
Transfer
574,92 USD
Contact us for purchases over 200kg and 15.000 EURO

ETHERNET Controller combines control functionality, I/O interface and ETHERNET in one device.

Application programming complies with IEC 61131-3

Function blocks allow both clients and servers to be programmed over socket APIs for all transport protocols (eg TCP, UDP).

Features and applications:


  • Distributed control for optimum PLC or PC support
  • Separate complex applications into units that can be tested individually
  • Programmable fault warning in case of fieldbus fault
  • Preprocessing signal reducing fieldbus transmissions
  • Direct peripheral equipment control for faster system response times
  • Standalone, compact controller
technical data
Communication Modbus (TCP, UDP)
Ethernet
Protocols HTTP
BootP
visualization without
Processor 16 bit
Programming languages in accordance with IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Chart (FBD), Continuous Function Chart (CFC)
Continuous Function Chart (CFC)
Formatted Text (ST)
Sequential Function Chart (SFC)
Programming WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options WAGO-I/O- CONTROL
Cycle time 3 ms for 1000-bit instructions / 256 digital I/O
Baud rate (communication/fieldbus 1) 10 Mbit/s
baud rate 10 Mbit/s
Fieldbus segment length max. 100 meters
Transmission medium (communication/fieldbus) Twisted Pair S-UTP 100 Ω Cat.5
Program memory 128KB
data memory 64KB
Software non-volatile memory 8 Kbytes
Memory for fieldbus input variables max. 512 bytes
Memory for fieldbus output variables max. 512 bytes
Number of I/O modules (per node) 64
Input and output process image (Fieldbus) max. 512 bytes/512 bytes

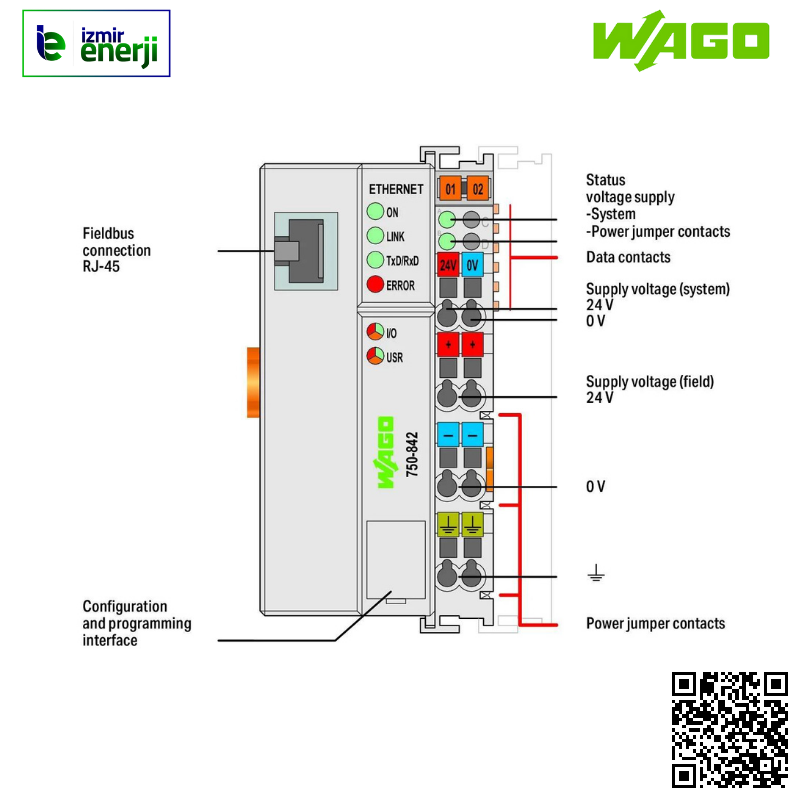

Indicators LED (ON, LINK, TxD / RxD) green: Fieldbus initialization, network connection, data exchange; LED (ERROR) red: Fieldbus fault; LED (I/O, USR) red / green / orange: Local bus status, user programmable status; LED (A, B) green: System power supply status, field supplied
System supply voltage 24 VDC (-25 … +30 %); via plug-in connector (CAGE CLAMP®link)
Input current at rated load type. (24V) 500mA
Power supply efficiency (typ.) at rated load (24 V) 87 %
Current consumption, system supply (5 V) 200mA
Total current for system supply 1.800 mA
Field supply voltage 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity of power jumper contacts 10 one
Number of outgoing power jumper contacts 3
Insulation 500 V system/field
connection data
Connection technology: communication/fieldbus Modbus TCP/UDP: 1 x RJ-45
Connection technology: system supply 2 x CAGE CLAMP®
Connection technology: field source 6 x CAGE CLAMP®
Connection type (1) System/field supply
Single core lengths 0.08 … 2.5 mm² / 28 … 14 AWG
Fine twisted cables 0.08 … 2.5 mm² / 28 … 14 AWG
Stripping length 8 … 9 mm / 0.31 … 0.35 inch
Connection technology: Device configuration 1 x Male end connector; 4 poles
Geometric Data
Width 50.5mm / 1,988 inches
Height 100mm / 3,937 inches
Depth 71.1mm / 2,799 inches
Length from top edge of DIN-35 rail 63.9mm / 2,516 inches
Mechanical Data
Weight 179 g
Colour Light grey
Body material Polycarbonate, polyamide 6.6
conformity mark THIS
Environmental Requirements
Surrounding air (operating) temperature 0 … +55 °C
Surrounding air (storage) temperature -25 … +85 °C
Protection class IP20
Pollution degree (5) 2 according to IEC 61131-2
working height without temperature derating: 0… 2000 m; with temperature derating: 2000… 5000 m (0.5 K / 100 m); 5000m (max.)
Relative humidity (non-condensing) 95 %
mounting position any
Mounting type DIN-35 beam
vibration resistant 4g in accordance with IEC 60068-2-6
Impact resistance 15g according to IEC 60068-2-27
EMC immunity to interference Marine applications in accordance with EN 61000-6-2
EMU: one - interference emission Marine applications in accordance with EN 61000-6-4
Exposure to pollutants In accordance with IEC 60068-2-42 and IEC 60068-2-43
fire load 3,387 MJ
Permissible H2S pollutant concentration at relative humidity 75% 10 pages/min
Permissible SO2 pollutant concentration at relative humidity 75% 25 pages/min
