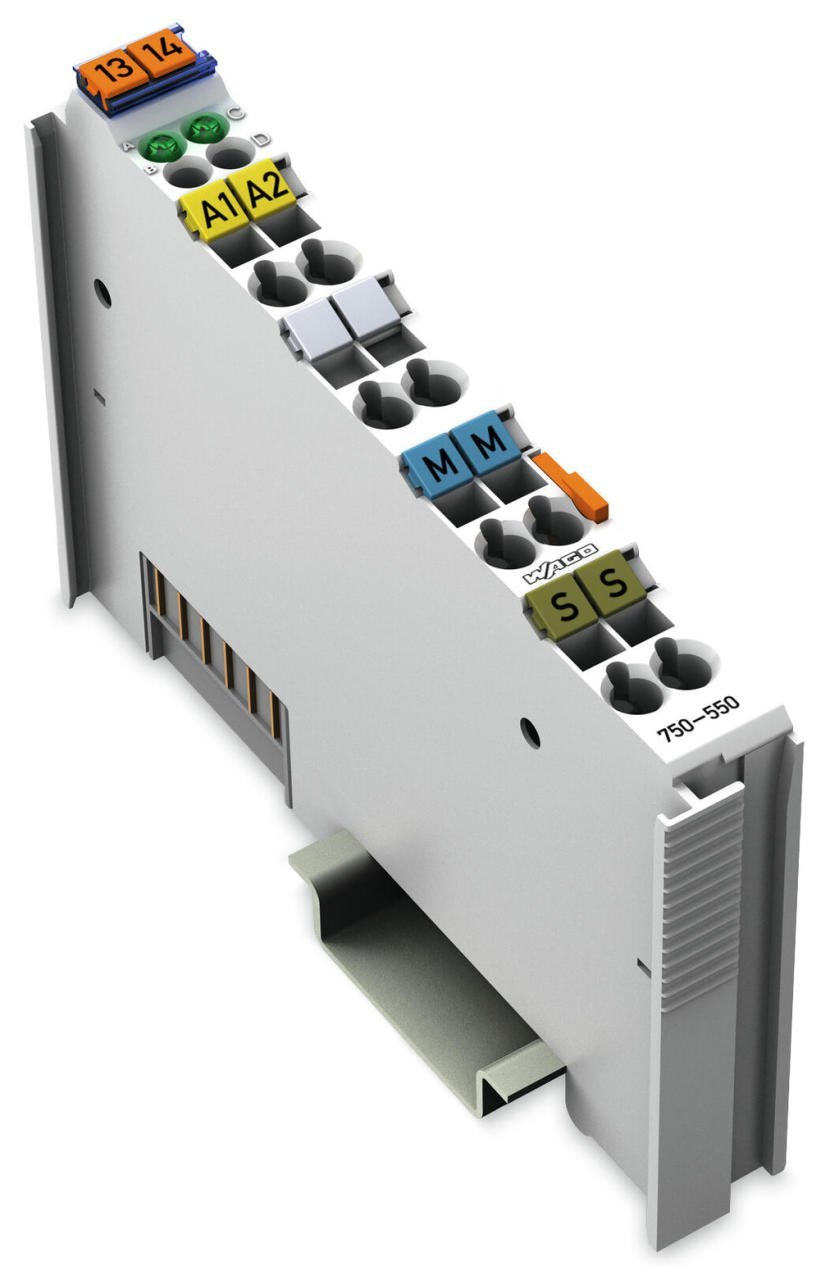

750-550 2-channel analog output; 0 ... 10 VDC; Light grey

Brand
Stock code
750-550
*starting from 38,33 USD!
%50 Discount
344,75 USD + VAT
827,41 USD
Transfer
413,70 USD
Contact us for purchases over 200kg and 15.000 EURO
Free cargo
Pre-ordered Product
Details
technical data
Number of analog outputs 2
Total number of channels (modules) 2
Signal type Voltage
Signal voltage type DC 0 ... 10 V
Actuator connection 2 x (2 conductors)
Resolution [bit] 12 Bits
Bit width 2 x 16-bit data 2 x 8-bit control/state (option)
Load impedance (output / voltage) ≥ 5 kΩ
Conversion time (typ.) 2 ms
Measurement error, reference temperature 25 °C
Measurement error, deviation max. measuring range end value 0.1 %
temperature error max. measuring range end value 0.01 % / N
Output error, deviation max. from the upper range value 0.1 %
temperature error max. from the upper range value 0.01 % / N
Recovery time (typ.) 0.3ms
linearity ± 10 mV
System supply voltage DC 5V; via data persons
Current consumption, system supply (5 V) 65mA
Insulation 500 V system/supply
Less
connection data
Connection technology: Inputs / Outputs 8 x CAGE CLAMP ®
Connection type (1) Inputs / Outputs
Single core lengths 0.08… 2.5 mm² / 28… 14 AWG
Fine twisted cables 0.08… 2.5 mm² / 28… 14 AWG
Stripping length 8… 9mm / 0.31… 0.35 inch
Geometric Data
Width 12mm / 0.472 inch
Height 100mm / 3.937 inches
Depth 69.8mm / 2,748 inches
Length from top edge of DIN-35 rail 62.6mm / 2.465in
Mechanical Data
Mounting type DIN 35 beam
Material Data
Colour Light grey
Body material Polycarbonate, polyamide 6.6
Weight 63 g
conformity mark THIS
Environmental Requirements
Surrounding air (operating) temperature 0…55 °C
Surrounding air (storage) temperature -40…85 °C
Protection class IP20
Pollution degree (5) 2 according to IEC 61131-2
working height 0…2000 m
mounting position horizontal (standing / lying) or vertical
Relative humidity (non-condensing) 95 %
vibration resistant 4g per IEC 60068-2-6
Impact resistance 15g according to IEC 60068-2-27
EMC's immunity to interference acc. Marine applications according to EN 61000-6-2
EMU: one - interference emission acc. Marine applications according to EN 61000-6-4
Exposure to pollutants According to IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S pollutant concentration at relative humidity 75% Up to 10 pages/minute
Permissible SO2 pollutant concentration at relative humidity 75% Up to 25 pages/minute
Less
Commercial Data
Product group 15 (Remote I/O)
Packaging type from SAP BOX
Country of origin NIN-NIN
GTIN 4045454393557
Customs Tariff number 85389099990
