750-362 MODBUS Fieldbus Coupler; 4th generation

750-362 MODBUS Fieldbus Coupler; 4th generation

Category
⁕ Industrial PC and PLC
Brand
WAGO
Stock code
750-362
*starting from 33,77 USD!
%60 Discount
303,80 USD + VAT
911,41 USD
Transfer
364,56 USD
Contact us for purchases over 200kg and 15.000 EURO
Product information
Product information

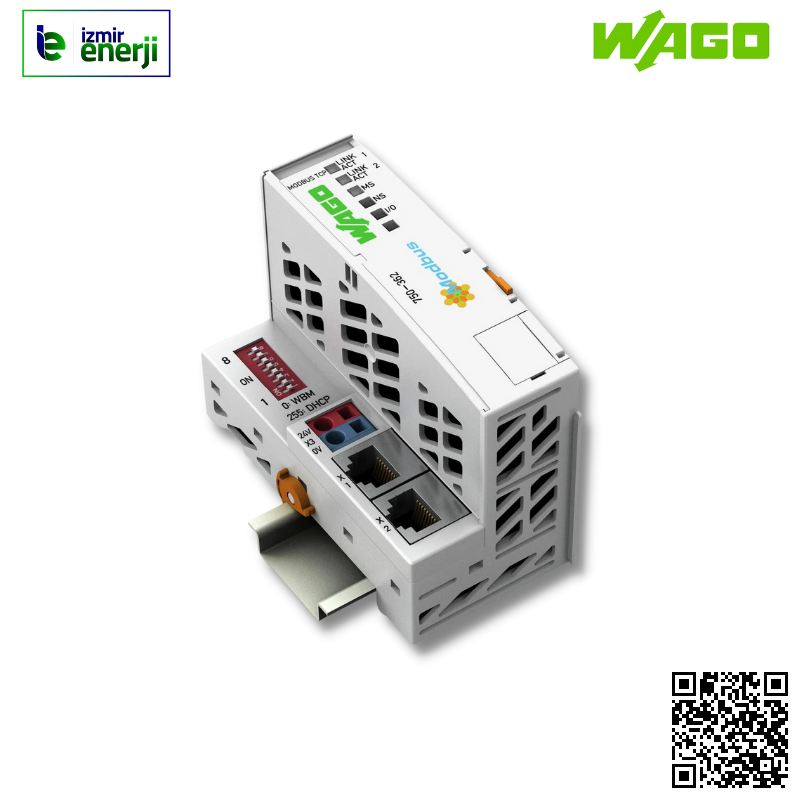

The 750-362 Modbus TCP/UDP Fieldbus Connector connects ETHERNET to the modular WAGO I/O System.


The fieldbus coupler detects all connected I/O modules and creates a local process image.


Two ETHERNET interfaces and an integrated switch allow the fieldbus to be connected to a line topology, eliminating the need for additional network devices such as switches or hubs.

Both interfaces support auto-negotiation and Auto-MDI(X).
The DIP switch configures the last byte of the IP address and can be used for IP address assignment (DHCP, BootP, static).

The connector is designed for fieldbus communication in MODBUS networks.

It also supports a wide variety of standard ETHERNET protocols (eg HTTP(S), BootP, DHCP, DNS, SNMP, (S)FTP). An integrated Web server provides user configuration options while displaying coupler status information.

System power is provided directly by the coupler. Field supply is provided via a separate supply module.
technical data
Communication Modbus (TCP, UDP)
Protocols HTTP(S)
BootP
DHCP
DNS
SNTP
FTP(S)
SNMP
baud rate 10/100 Mbit/s
transmission medium Twisted Pair S-UTP; 100 Ω; cat. 5; 100 m maximum cable length
Transmission performance Class D according to EN 50173
Number of I/O modules (per node) 250
Number of I/O modules without bus extension max. 64
Input and output process image (Fieldbus) max. 1020 words/1020 words
System supply voltage 24 VDC (-25 … +30 %); via plug-in connector
Current consumption, system supply (5 V) 350 mA
Total current for system supply 700mA
Input current at rated load type. (24V) 280 mA
Power supply efficiency (typ.) at rated load (24 V) 90 %
Insulation 500 V system/field

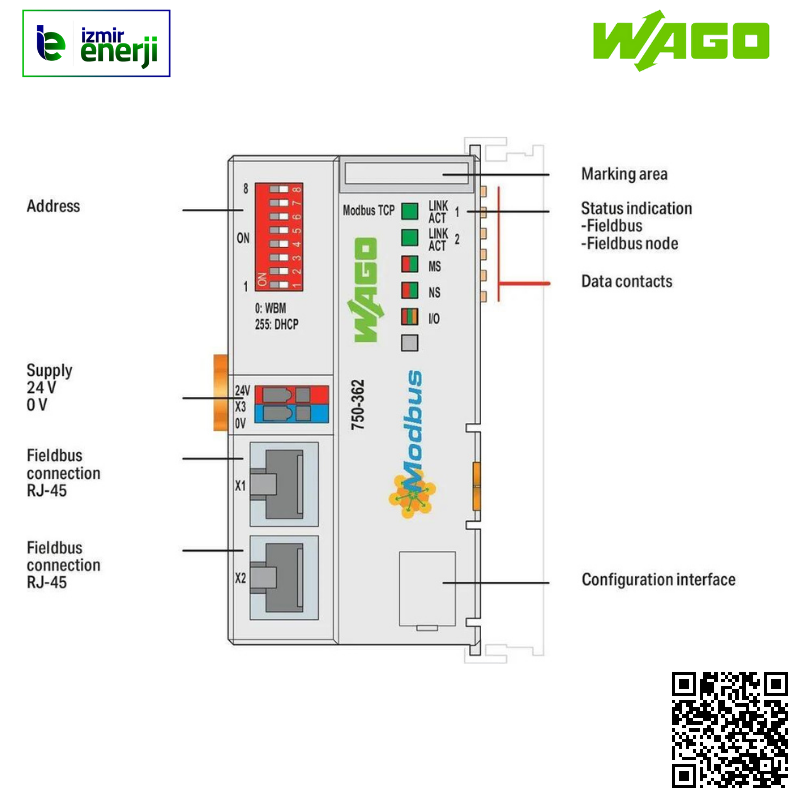

Indicators LED (LINK / ACT) green: network connection via ports 1… 2; LED (MS, NS) red / green: Node status, network; LED (I / O) red / green / orange: Status of the local bus
connection data
Connection technology: communication/fieldbus Modbus TCP/UDP: 2 x RJ-45
Connection technology: system supply 2 x CAGE CLAMP®
Connection technology: Device configuration 1 x Male end connector; 4 poles
Connection type (1) system feeding
Single core lengths 0.08 … 2.5 mm² / 28 … 14 AWG
Fine twisted cables 0.08 … 2.5 mm² / 28 … 14 AWG
Stripping length 8 … 9 mm / 0.31 … 0.35 inch
Geometric Data
Width 49.5mm / 1,949 inches
Height 96.8mm / 3.811 inches
Depth 71.9mm / 2,831 inches
Length from top edge of DIN-35 rail 64.7mm / 2,547 inches
Mechanical Data
Mounting type DIN-35 beam
Material Data
Body material Polycarbonate, polyamide 6.6
fire load 1,394 MJ
Weight 104.8 g
conformity mark THIS
Environmental Requirements
Surrounding air (operating) temperature 0 … +55 °C
Surrounding air (storage) temperature -25 … +85 °C
Protection class IP20
Pollution degree (5) 2 according to IEC 61131-2
working height 0 … 2000 m
mounting position horizontal (standing / lying); vertical
Relative humidity (non-condensing) 95 %
vibration resistant 4g in accordance with IEC 60068-2-6
Impact resistance 15g according to IEC 60068-2-27
EMC immunity to interference Marine applications in accordance with EN 61000-6-2
EMU: one - interference emission Marine applications in accordance with EN 61000-6-3
Exposure to pollutants In accordance with IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S pollutant concentration at relative humidity 75% 10 pages/min
Permissible SO2 pollutant concentration at relative humidity 75% 25 pages/min
