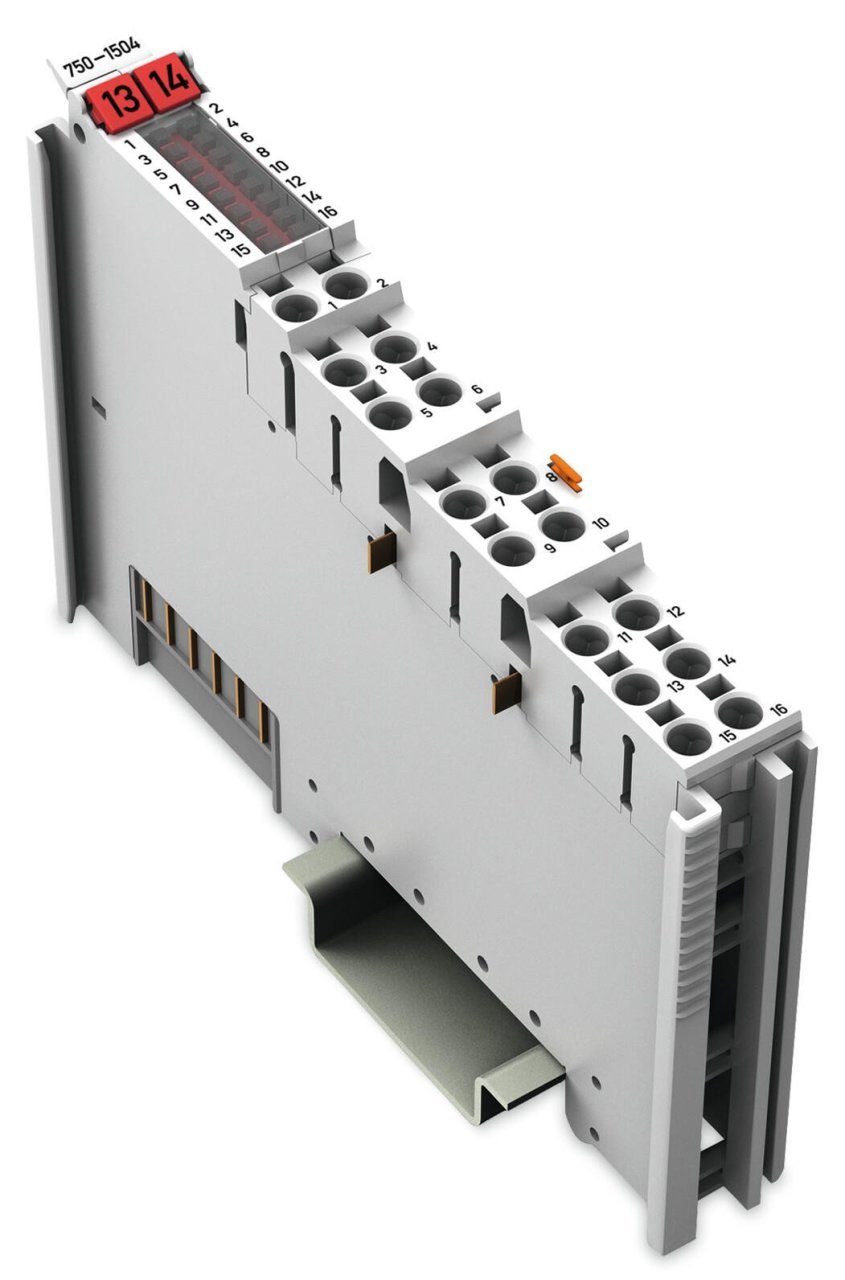

750-1504 16-channel digital output; 24 VDC; 0.5 A; Light grey

750-1504 16-channel digital output; 24 VDC; 0.5 A; Light grey

750-1504 16-channel digital output; 24 VDC; 0.5 A; Light grey

Category

DIGITAL OUTPUT MODULES (DO)

Brand

WAGO

Stock code

750-1504

*starting from 14,74 USD!

%68 Discount

132,63 USD + VAT

497,35 USD

Transfer

159,15 USD

Add to Basket

Free cargo

Pre-ordered Product

Details

technical data

Number of digital outputs	16
Total number of channels (modules)	16
Signal type	Voltage
Signal voltage type	DC 24V
Actuator connection	16 x (1 conductor)
Output characteristic	high side switching
Output current per channel	0.5 A
Output current	short circuit protected
Switching frequency max.	1kHz
load type	Resistive inductive lamps
Output (internal) data width (max.)	16 Bits
System supply voltage	DC 5V; via data persons
Current consumption, system supply (5 V)	40mA
Field supply voltage	DC 24 V (-25 ... + 30%); via power contacts (supply via blade contact; routing via spring contact)
Current consumption, field supply (external no-load module)	29mA
Insulation	500 V system/supply
Indicators	LED (1-16) green: Status DO 1… DO 16
Number of incoming power jumper contacts	2
Number of outgoing power jumper contacts	2
Current carrying capacity of power jumper contacts	10 A

Less

connection data

Connection technology: Inputs / Outputs	16 x Push-in CAGE CLAMP ®
Connection type (1)	Inputs / Outputs
Single core lengths	0.08… 1.5 mm² / 28… 16 AWG
Fine twisted cables	0.25… 1.5 mm² / 22… 16 AWG
Stripping length	8… 9mm / 0.31… 0.35 inch
Conductor type (1)	f-st
Conductor type (2)	s
Conductor type (1)	finely twisted
Conductor type (2)	monocore

Less

Geometric Data

Width	12mm / 0.472 inch
Height	100mm / 3.937 inches
Depth	69mm / 2,717 inches
Length from top edge of DIN-35 rail	61.8mm / 2.433in

Mechanical Data

Mounting type	DIN 35 beam
Pluggable connector	No

Material Data

Colour	Light grey
Body material	Polycarbonate, polyamide 6.6
Weight	50g
conformity mark	THIS

Environmental Requirements

Surrounding air (operating) temperature	0…55 °C
Surrounding air (storage) temperature	-40…85 °C
Protection class	IP20
Pollution degree (5)	2 according to IEC 61131-2
working height	0…2000 m
mounting position	horizontal (standing / lying) or vertical
Relative humidity (non-condensing)	95 %
vibration resistant	4g per IEC 60068-2-6
Impact resistance	15g according to IEC 60068-2-27
EMC's immunity to interference	acc. Marine applications according to EN 61000-6-2
EMU: one - interference emission	acc. Marine applications according to EN 61000-6-3
Exposure to pollutants	According to IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S pollutant concentration at relative humidity 75%	Up to 10 pages/minute
Permissible SO2 pollutant concentration at relative humidity 75%	Up to 25 pages/minute

Less

Commercial Data

Product group	15 (Remote I/O)
Packaging type from SAP	BOX
Country of origin	NIN-NIN
GTIN	4045454905576
Customs Tariff number	85371098990
